Tier Element

LUXURY SPC INDOOR FLOORING

With CarbideCore technology

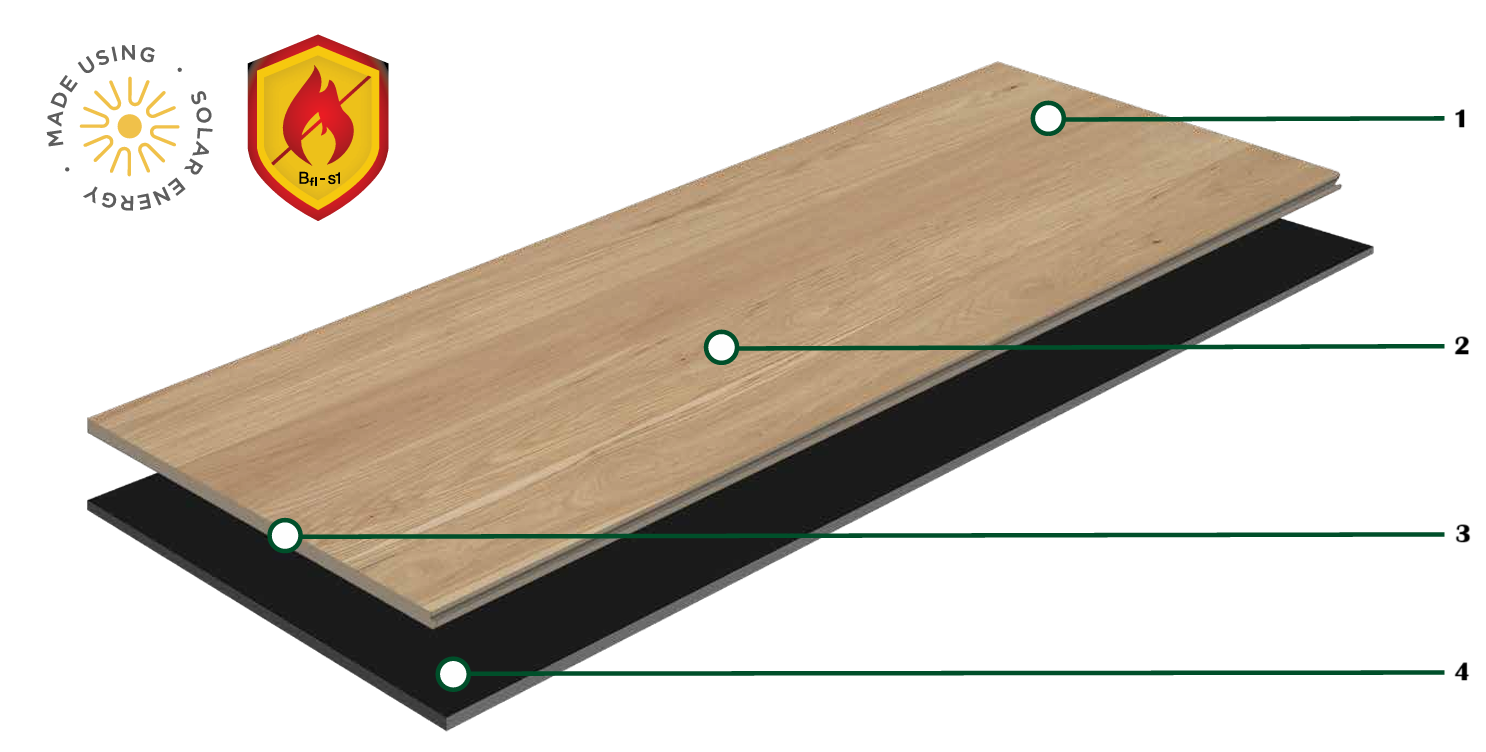

1 HARDENED CERAMIC COATING An integrated hardened ceramic coating improves durability to ensure that your floor is protected from wear for years to come.

2 DIRECT DIGITAL PRINT Advanced digital replication technology gives an unrivalled natural aesthetic to your floors.

3 CARBIDECORE Manufactured with solar energy

4 DENSE IXPE UNDERLAY Enhanced sound & thermal insulation and a softer feeling underfoot.

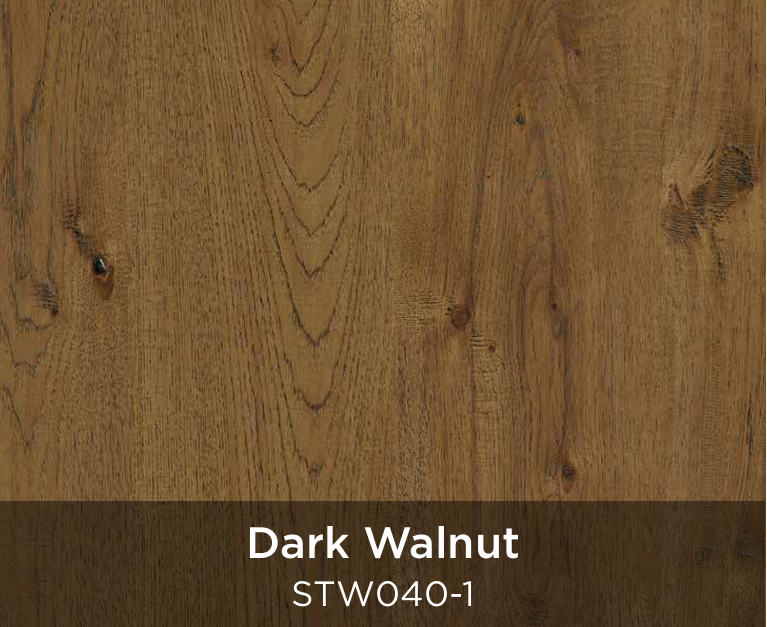

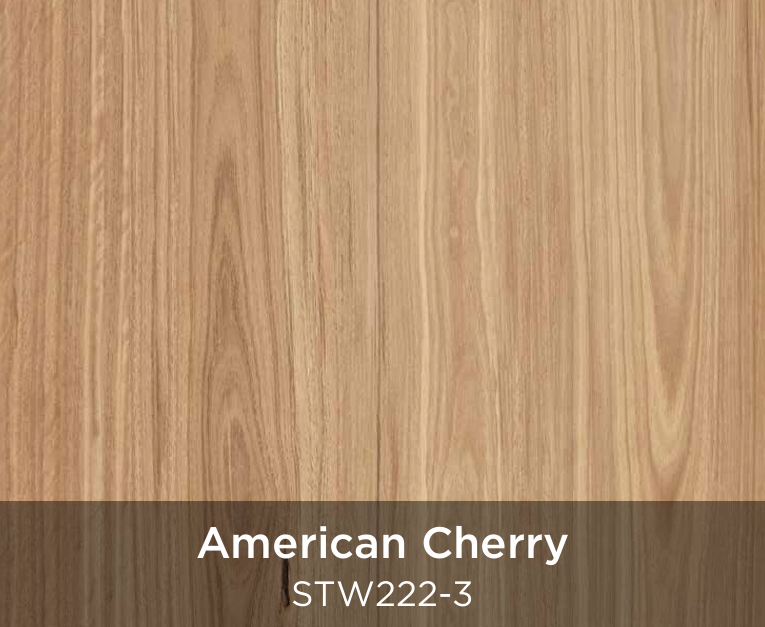

TIER Element flooring offers an advanced digital photo-realistic print technology that mirrors the timber grain and pattern, giving your floor a more natural look in a 6.5 mm profile. Anti-slip and UV protection provide greater longevity, safety, and style.

PROFILE

TIER Element is a 6.50 mm profile comprised of a 5.33 mm CarbideCore with a 0.17 mm wear coating and print layer. This is combined with a 1 mm IXPE layer. With an AC4 wear rating, this product is suitable for use in both residential and commercial applications.

6.5 mm

228 mm

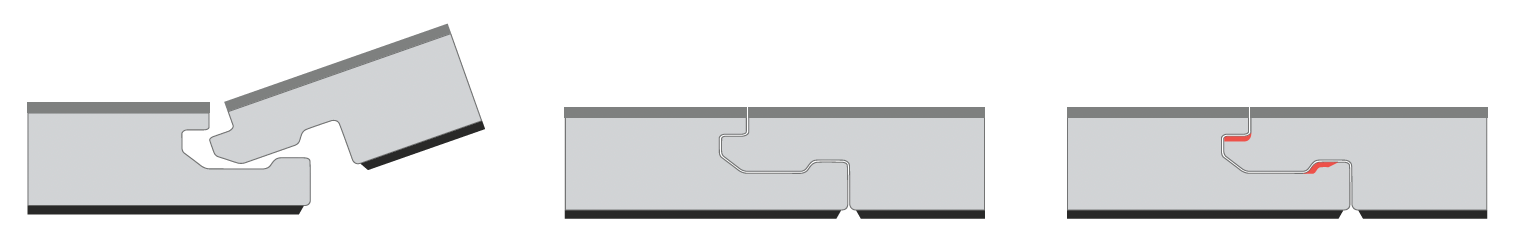

2G CLICK SYSTEM

2G Angling technology offers a strong, robust, and reliable method for installing flooring. This type of click system involves angling flooring panels to engage the locking mechanism. This results in sturdy and dependable horizontal locking, preventing gaps between planks, as well as vertical locking which ensures no unwanted height differences across the floor.

SPECIFICATIONS AND WARRANTY

TIER ELEMENT SPECIFICATIONS
Total thickness	Dimensions	Boards per box
6.50 mm	228 × 1 520 mm	6
Ceramic coating thickness	Core thickness	Mass per board
0.17 mm	5.33 mm	4.3 kg
Underlay thickness	m² per board	m² per box
1.00 mm	0.346 m²	2.08 m²
Click system
2G Groove

WARRANTY CLASS
Commercial	Domestic
5 YEAR WARRANTY	25 YEAR WARRANTY
Abrasion class*	Abrasion class*
AC4	AC4
Use class	Use class
33	33
